FCC-MPCF-1-32/94/64 Calibration Fixture for FCC Current Probe F-14

Product Description:

FCC-MPCF-1-32/94/64 YesCurrent Probe F-14The calibration fixture of the current probe F-14, produced and developed by FCC in the USA, is now authorized to be sold and quoted as a service by EUTTEST Shenzhen. The current probe F-14 has a thickness of 64 mm and can be perfectly placed into the center conductor of the current probe calibration fixture to measure the voltage VSWR parameter.

Technical parameters：

Product Specification Sheet:

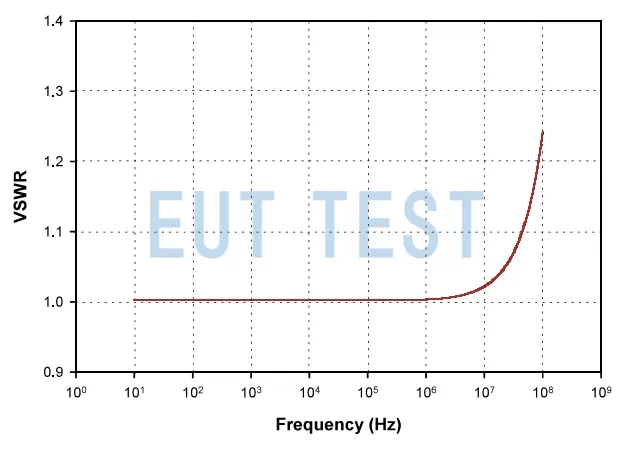

The Voltage Standing Wave Ratio VSWR of this fixture varies with frequency and the detailed data is shown in the following figure.

FCC-MPCF-1-32-94-64 Voltage VSWR Test Chart

Order No. EUTS0837

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
