FCC-MPCF-2-305/394/51 300MHz Current Probe Calibration Fixture

FCC-MPCF-2-305/394/51 300MHz Current Probe Calibration Fixture
FCC-MPCF-2-305/394/51 300MHz Current Probe Calibration Fixture VSWR Test Data Chart for FCC-MPCF-2-305/394/51
Order Number: EUTS0838
Type: Current probe calibration fixture
Brand: FCC

Min. order: 1 Unit
Stock: 0
Delivery: 16 weeks

Standards: Common Test Standards
Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Internet Banking T/T

Product Price:

Product Description:

FCC-MPCF-2-305/394/51 is a 300MHz current probe calibration fixture produced by the FCC. It can be used to calibrate the transmission impedance coefficients of some of the current monitoring probes produced by the FCC, but it requires that the outside diameter of the probe be less than 394 mm and the height of the probe be less than 51 mm.

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”
Model:
fcc-mpcf-2-305/394/51
Manufacturer:
Fischer Custom Communications, Inc.
Agent sales in China:
Shenzhen EUTTEST
Test frequency range:
10 kHz - 300MHz
Standing wave ratio:
0~25 Variable with frequency,<25:1
Size:
508 mm * 449 mm * 458 mm
Weight:
40 kg
Recommended test current probes:
F-170317-1005-1
“Reminder: swipe tables left and right”

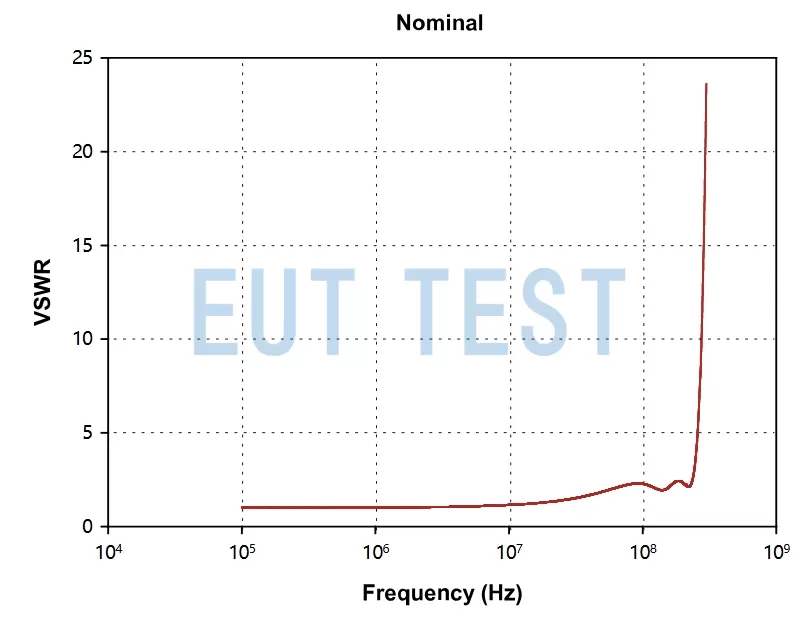

VSWR Test Data Chart for FCC-MPCF-2-305/394/51

VSWR test data graph



Order No. EUTS0838

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
