FCC-MPCF-2-32-40/71/19 FCC Current Probe Calibration Fixture

Introduction：

FCC-MPCF-2-32-40/71/19 is produced by the United States FCC (Fischer Custom Communications, Inc.) and authorized by Shenzhen EUTTEST agent sales of current probe calibration fixture, test frequency: 10Hz-500MHz, applicable to F-52B and other current probe calibration test.

This calibration fixture can be used to calibrate open-ended caliper-type current probes. Four latches on the top of the fixture secure the top cover to the upper portion of the fixture so that the current probe being calibrated can be easily clamped around the center conductor when the top cover of the fixture is removed.

The calibration fixture accommodates FCC current probes with an inside diameter of 32 mm or 40 mm, an outside diameter of 71 mm and a height of 19 mm.

Which probes can be calibrated:

The FCC-MPCF-2-32-40/71/19 can be used to measure the transfer impedance curves of the following current probes and can also be used for self-checking by third party testing laboratories. FCC-MPCF-2-32-40/71/19 is designed for transfer impedance calibration and measurement of F-33-1, F-33-1-40 mm, F-33-2, F-52B, F-171221-1005-1 current probes. Ideal for current probe metrology in metrology organizations and for self-checking by third-party testing laboratories.

F-33-1

F-33-1-40 mm

F-33-2

F-52B

F-171221-1005-1

Technical data of FCC-MPCF-2-32-40/71/19:

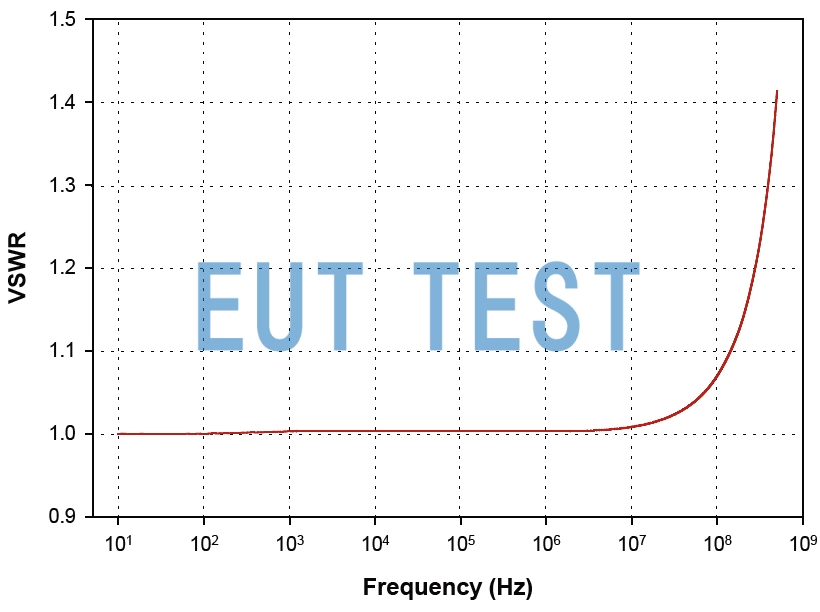

VSWR Curve for FCC-MPCF-2-32-40/71/19

Order No. EUTS0149

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
