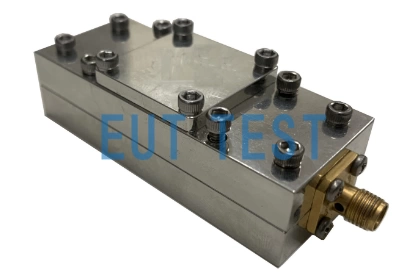

FCC-TEM-JM7C Transverse Electromagnetic Wave TEM cell DC-8GHz

Product Description:

FCC-TEM-JM7C is a transverse electromagnetic wave TEM chamber produced by FCC Fischer Custom Communications, Inc. in the U.S.A. The FCC authorizes EUTTEST Shenzhen to provide all product sales and quotation services.

Available test standards:

The JM7C extends the operating frequency range beyond existing equipment and now allows emission and immunity testing of integrated circuits up to 8 GHz.The IC is mounted on a test fixture that is bolted into place. Once mounted, measurements can be made up to 8 GHz according to the following criteria

• IEC 61967-2
• IEC 61967-8
• SAE 1752-3
• IEC 62132-8

The TEM-JM7C can be used for immunity testing and requires approximately 0.1 mW of input power for a 14 V/m field and approximately 1 W for a 1400 V/m field.

Technical parameters：

Remarks:FCC-TEM-JM7D Conforms to the requirements of the IEC 61967 standard for 10cm*10cm adapter plates. Please select this product for testing.

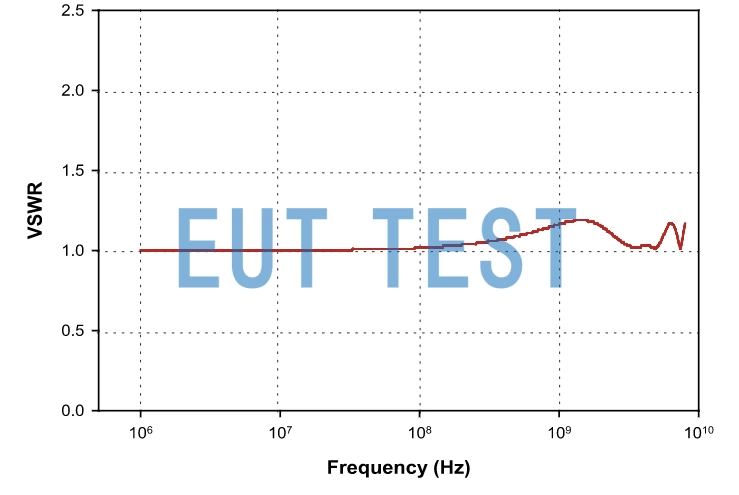

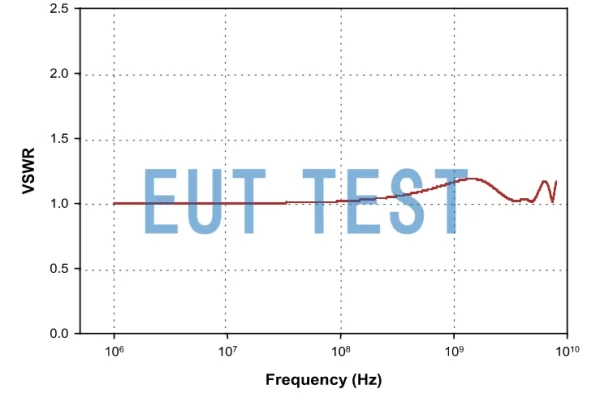

VSWR chart

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
