HI-1600 ETS-LINDGREN Microwave Radiation Leakage Tester 2450 MHz or 915 MHz

Product Description:

The HI-1600 is one of the microwave radiation leakage testers manufactured by ETS-LINDGREN, USA and authorized by EUTTEST Shenzhen for sales and quotation services. This microwave test instrument housing contains a rugged meter whose movement is driven by an operational amplifier and powered by two 9-volt alkaline batteries, the negative battery is used in conjunction with a stabilizing voltage regulator to provide support for the instrument to maintain the critical reference voltage required for calibration.

Technical parameters：

Product Specification Sheet:

Product Features:

Response time switching function:

In addition, this hand-held microwave leak test probe circuit has a stabilized internal integration circuit and a response time fast/slow position switch that, when used in the ”fast” position, takes less than one second for the meter pointer to reach the final value of 90% (at a constant microwave field input); The “slow” position provides a longer time constant of less than three seconds, which is permitted under the DHHS Microwave Oven Performance Standard CFR 1030.10 for measurements at 915 MHz and 2450 MHz. This product has been calibrated by ETS-lindgren's professional testers, and EUTTEST will also check the unit upon shipment.

Response fast/slow switch

Summary:Response time (90% for step input to final value): Fast: < 1 sec; Slow: < 3 sec

Battery test function

Turn the selector knob on the meter to the “BATT. TEST” position to determine if the battery needs to be replaced. Contact EUTTEST for assistance with battery replacement.

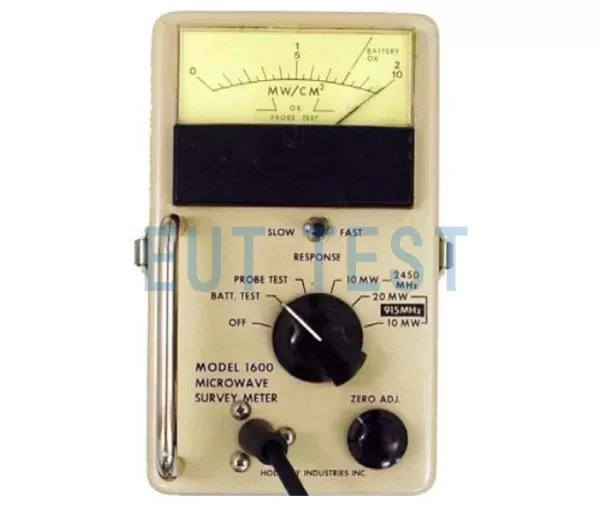

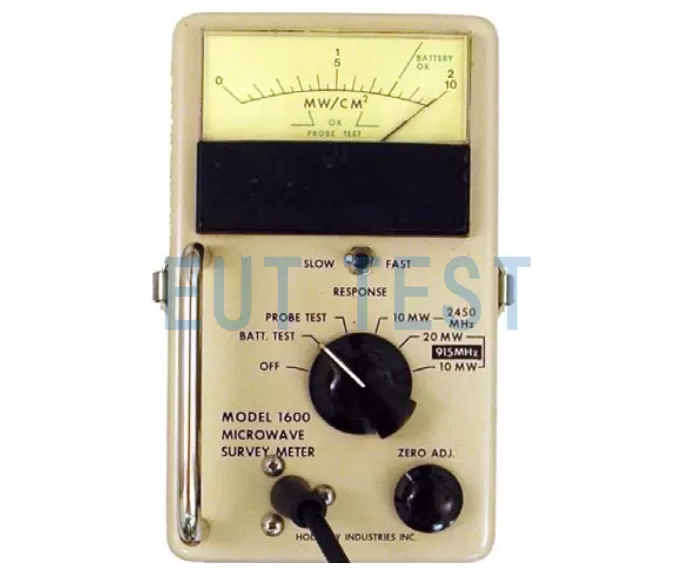

Battery Test Mode

Probe self-test function

You can also turn the knob to ” PROBE TEST”, using this feature allows the HI1600 to self-calibrate and you can determine if the unit is still usable. When the probe is determined to be inoperable, the probe is damaged and should not be used. Damaged probes cannot be replaced in the field and should be returned to EUTTEST for repair.

Test range is optional:

When the previous step is used to confirm that the microwave radiation leakage tester's probe test is normal, we can start the test, in the 2-20 mW/cm² and 1-10 mW/cm², 1-10 mW/cm² between a can be used to select a gear can be used.

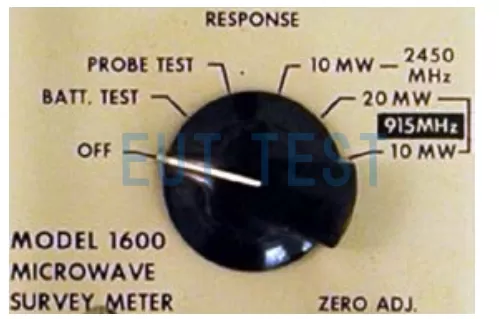

Three different test ranges can be selected

In summary, ETS' Microwave Radiation Leakage Tester HI-1600 is ideally suited for the power density needs of microwave oven manufacturers or third party metrology labs, etc. to measure microwave oven leakage in accordance with CFR 1030.10. Contact EUTTEST for quote information.

Differences from other similar products:

EUTTEST also sells the following different models of ETS-LINDGREN power density testers, and we have listed their most important parameters in the table below for your comparison.

Feel free to click on the links below to learn more about the products and contact us for a product quote.

Order No. EUTS0846
