HPF 150 K Schwarzbeck 150kHz High Pass Filter

Product Description:

The HPF 150 K is a 150 kHz high pass filter from Schwarzbeck, Germany, specifically designed to filter out the CISPR 16-1-1 standard.Artificial Power Network LISNWhen looking at the insertion loss calibration results for low-frequency conducted interference voltage noise below 150 kHz, it can be seen that the HPF 150K has a very steep rising edge at 150 kHz. In addition, the high pulse loading capability and voltage withstand design can be adapted to meet the needs of more types of electronic products for EMC testing.

This product is represented by Shenzhen EUTTEST for sales, training and after-sales service.

Technical parameters：

Product Specification Sheet:

Measurement calibration results chart:

Schwarzbeck's HPF 150 K high pass filter is designed with a fixed stopband frequency, so you don't need to pay much attention to its insertion loss, just make sure that your product needs to measure conducted interference signals in the range of 9kHz-30MHz, and when it doesn't need to be measured, then you need to purchase this high pass filter.

Below is a graphical representation of the product related metrology and calibration results, we still provide an excel spreadsheet of all data for your use upon delivery.

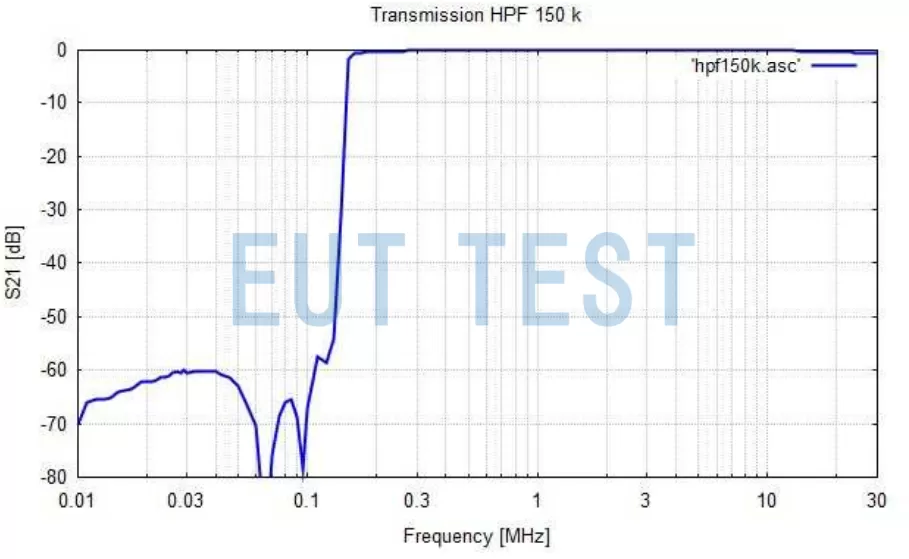

Insertion Loss S21 Calibration Results

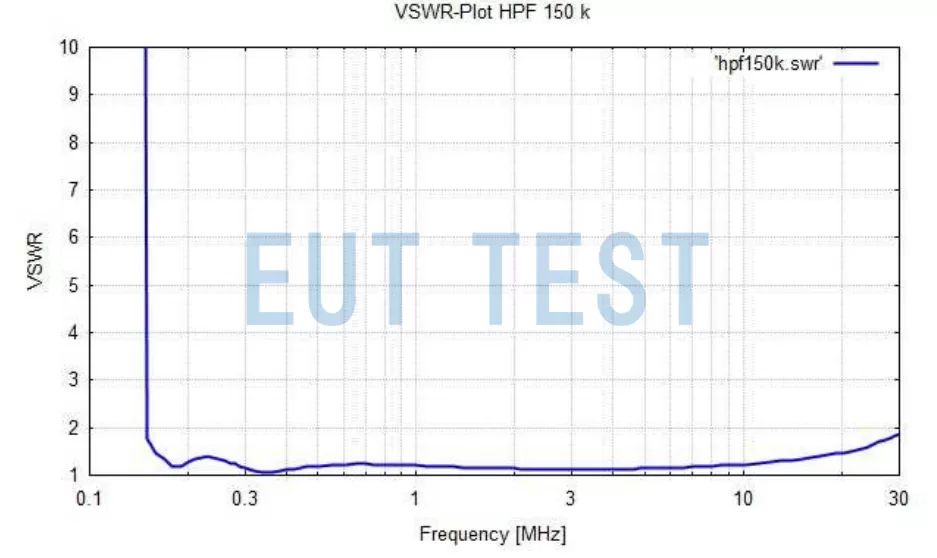

Voltage VSWR metrology calibration results

Order No. EUTS0855
