HPF 27.12 MHz High Pass Filter

Product Description:

HPF is a 27.12 MHz high pass filter produced by Schwarzbeck, Germany, which is specially used for the spurious measurement of medical transmittance test, the insertion loss of passband is 38dB, and this product is represented by EUTTEST in Shenzhen for sales and after-sales service.

Technical parameters：

Product Specification Sheet:

Metrological calibration test results:

When using this high pass filter from schwarzbeck, you need to pay attention to whether the insertion loss in the following factory calibration test results meets your requirements, both the pass band and the reject band need to be determined according to the test needs to be met, we will supply the goods with an Excel calibration results data sheet for you to use when metering.

Insertion Loss Calibration Test Results

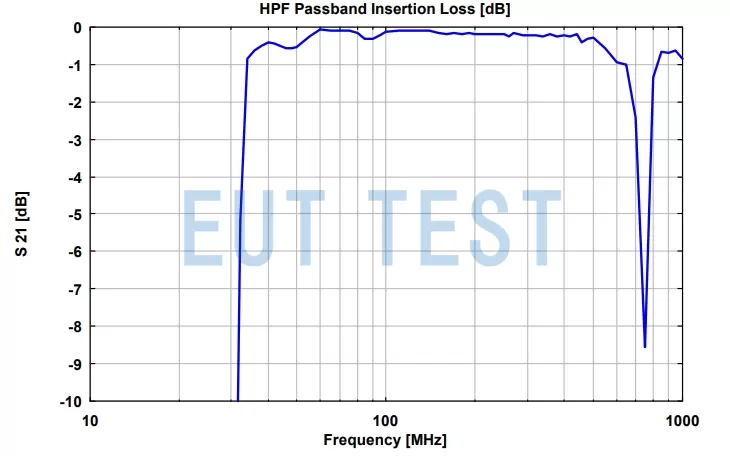

Passband Insertion Loss Calibration Test Results (Enlarged)

Voltage VSWR test results

Order No. EUTS0854
