HT9464 High Voltage Isolation Tester and Partial Discharge Tester

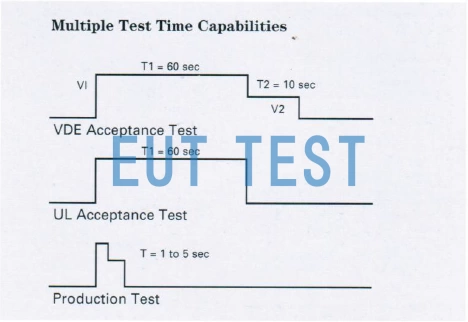

HT9464 High Voltage Isolation Test Standard Test Waveforms

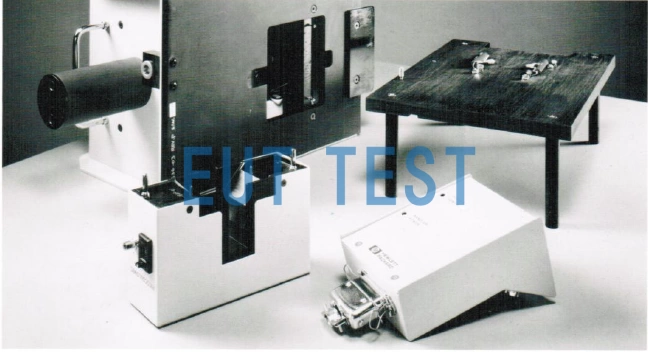

Calibration Kit PDC-710V for HT9464 in accordance with VDE 0884

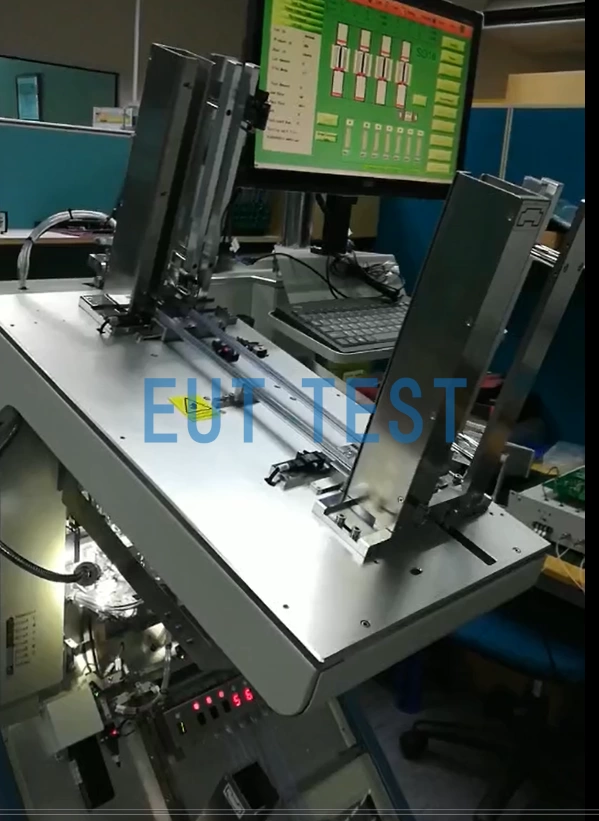

HT9464 Automatic version with automatic handler interface + sorter.

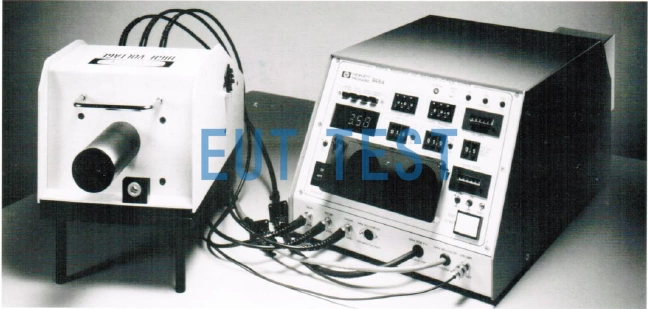

HT9464 Manual version - for manual operation of test samples/labs.

Order Number: EUTS0019

Type: Isolation voltage and local discharge

Brand: HARRIS TUVEY

Min. order: 1 Unit

Stock: 0

Delivery: 11 weeks

Standards:

Industry： Integrated Circuit IC Testing

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Product Description:

The HT9464 is a high voltage isolation withstand voltage tester and partial discharge tester from HT world Inc. in the USA. The HVTester 9464 is distributed by EUTTEST Shenzhen and complies with stringent international standards for opto-couplers or capacitive couplers, such as UL1577, VDE 0083, VDE 0884-11, VDE 0884-17. The testers provide the high AC voltages required to isolate the dielectric boundaries of devices where dielectric strength is critical (e.g., optocouplers, opto-triodes, capacitive couplers, inductive couplers, Hall effect current transducers, solid state relays, pulse transformers, conventional relays, short coaxial cables, and dielectrics between layers of PC boards, etc.). The tester is equipped with safety interlocks that allow the operator to safely use voltages up to 7 kVac or 9.9 kV peak.

Product Features:

Manufactured to UL, IEC and VDE specifications.
Performs VDE and IEC type and random tests (two-phase 60 s/10 s) as well as a typical 1-second IEC routine production test.
Can only be used for leakage testing; or leakage and partial discharge testing. leakage current is monitored during T1 test time; leakage current and partial discharge are monitored during T2 test time.
Partial discharge PASS/FAIL thresholds are accurately calibrated over a range of 1 to 9 picocoulomb steps. For 10 to 50 picocoulombs, use linear extrapolation calibration.
Implements High Q Narrowband and Wideband Integrator Partial Discharge Detection Circuits; with 1 picocoulomb detection sensitivity. The High Q Narrowband Detector is the factory default configuration.
Two-stage test sequence with adjustable ble voltage levels (0-7 kVAC) and test times (0.2 to 99.9 seconds) for each stage T1 and T2

Related Products:

This product replaces the discontinued HT9460:Difference between HT9464 and HT9460The

You can also purchase another isolation voltage and partial discharge tester: HT-9464M (with touch screen operation and software automation testing).Difference between HT9464 and 9464MThe

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”

Product model number (Remark 1):

HT9464

Manufacturer:

Product Name:

High Voltage Isolation Tester Local Discharge Tester

Agent service provider in China:

Shenzhen EUTTEST

Output voltage range:

0 - 7.00 kVac rms or 0 - 9.99 kV peak with 10 V resolution. 2% +/- one digit accuracy.
0 - 4.00 kVac rms or 5.66 V peak for processor configurations for partial discharge testing at 5 pC.

Test voltage duration:

T1 and T2 from 0.2 to 99.9 seconds. Maximum of 200 seconds in total.

Programmable leakage test threshold:

0 to 99 microamps in 0.1 microamp steps, 100 meg ohms in parallel, current limited to 10 pF. 2% +/- one digit accuracy.

Partial discharge test detection:

Single event or numerical multiple events.

Partial discharge test thresholds and delays:

0 to 50 picocuries in steps of 0.1 pC
Delay 0.0 to 9.9 seconds.

Display mode and 3-1/2 digit panel meters:

Source or equipment voltage (kV or kV peak), leakage current (µA)

High pressure:

0 to 7.0 kVac or 0 to 9.99 kV peak, accuracy 2% +/- one digit.

Lower threshold:

Ensure that the actual equipment voltage is not lower than required.

Indicator light:

Test, Pass, Fail High Voltage, Fail Leak and Fail Corona.

Audible alarm:

100 ms alarm for each device failure, disabled by panel switch.

Test counter:

6-bit counter indicating the total number of devices passed.

Fault counter:

6-digit counter for total number of device failures.

Output Signal:

Handling interface, half-signal labeling, in-progress testing, leakage monitor (1 µA = 100 mv), half-cycle with corona.

Secure connection ks:

The test voltage circuitry is automatically interrupted when the handling device test area is opened or the high voltage component is removed.

Operating Environment:

15 - 35 °C ;35% to 75% Relative humidity, non-condensing.

Size and weight:

Manual version 38.1 cm (15 inches) high, 30.5 cm (12 inches) wide, 81.2 cm wide
(32") long and weighs 31.8 kg (70 lbs). Automatic version weighs 31.8 kg (70 lbs), consult euttest for sizes.

“Reminder: swipe tables left and right”

Note 1: This model number is also described in some scenarios as: HT-9464 or HVTester 9464 The

Introduction to the manual and automatic versions of the system:

You can purchase manual or automatic versions of the test, provide your requirements information to EUTTEST sales staff, we will provide you with suitable isolation voltage and partial discharge test program.

HT 9464 manual test version:

Test one chip at a time. Customized adapters for chips are required, please contact us for more information.
