STLP 9128 D Schwarzbeck Stacked Log Periodic Antenna

STLP 9128 D
STLP 9128 D Input Power vs. E-field Strength for STLP 9128 D - 1 meter test distance Antenna Gain Graph for STLP 9128 D
Order Number: EUTS0363
Type: Logarithmic periodic antenna
Brand: Schwarzbeck

Min. order: 1 Unit
Stock:
schwarzbeck Real Time Inventory
Delivery: Click on the link above to inquire

Standards: Common Test Standards
Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Internet Banking T/T

Product Price:

Introduction：

The STLP 9128 D Stacked Log Periodic Antenna is a high power output antenna manufactured by Schwarzbeck, Germany and authorized for sale by EUTTEST in Shenzhen, China. The antenna is configured with a wide range of options for the user to choose from, and you can make the antenna support up to 3kW of input power by installing the optional 7/16 connector option. The antenna also has an optional quick connect option that allows the user to remove the rear element in seconds without the need for any other tools, and the disassembled element can be divided into five parts for easy storage and transportation.

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”
Product model
STLP 9128 D
Manufacturer and place of origin
Germany schwarzbeck
Domestic China Agent Sales
Shenzhen EUTTEST
Recommended test frequency range:
80MHz-3GHz
Available test frequency range:
64MHz-4GHz
Polarization:
linear
Antenna Direction:
directional
Material:
aluminum
Maximum power (7/16 option):
2 kW (constant)
3 kW (intermittent)
Maximum power (N):
1 kW (constant)
1.5 kW (intermittent)
Joints:
7/16 F
N F
Impedance:
Rated at 50 ohms
Length:
1460 mm
Width:
1850 mm
high degree
2000 mm
Weight:
8.1 kg
Installation:
Tubes 22 mm in diameter
option
Options to support rapid disassembly
7/16 Connector
“Reminder: swipe tables left and right”

Graph of related technical parameters：

This antenna is dedicated to radiated immunity testing, and we will show a graph of the gain-related curve data below.

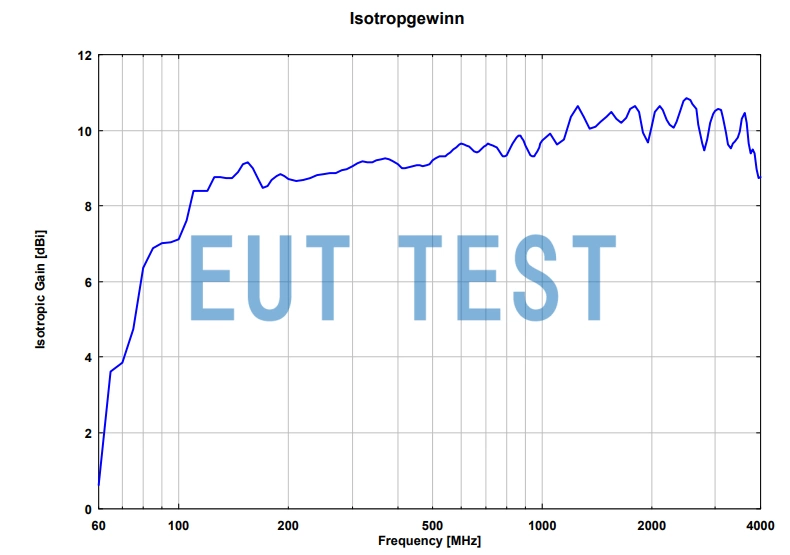

Antenna Gain Graph for STLP 9128 D

Antenna Gain Graph

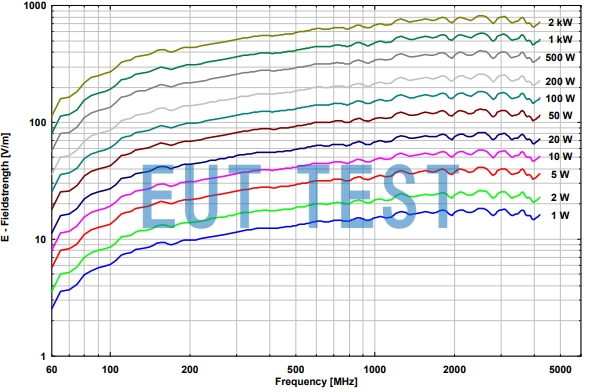

Input Power vs. E-field Strength for STLP 9128 D - 1 meter test distance

Plot of input power vs. electric field strength - 1 meter test distance

Contact us for data on other test distances.
