STLP 9148 Schwarzbeck Stacked Microwave Log Antenna

Order Number: EUTS0370
Brand: Schwarzbeck

Min. order: 1 Unit
Delivery: Click on the link above to inquire

Standards:
Industry: General Electronics

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Internet Banking T/T

Product Price:

Introduction:

STLP 9148 is a stacked microwave log-periodic antenna manufactured by Schwarzbeck (Germany) and authorized to be sold by EUTTEST (Shenzhen). The test frequency covers a wide band from 700MHz to 20GHz, and this antenna is generally recommended for microwave transmitting and receiving applications above 1GHz. The structure of this log-periodic antenna is made of laser-cut brass, and a removable protective shell is added on the outside to protect the antenna mechanism. EMC testers can use this antenna in a microwave dark room, and the test distance can be moved from 0.5m to 3m position, and you only need to inject 50W of power to get an E-field strength of 100V/m in the front of the antenna, for details, please check the following graphs of input power For details, please see the graph of input power and electric field strength below.

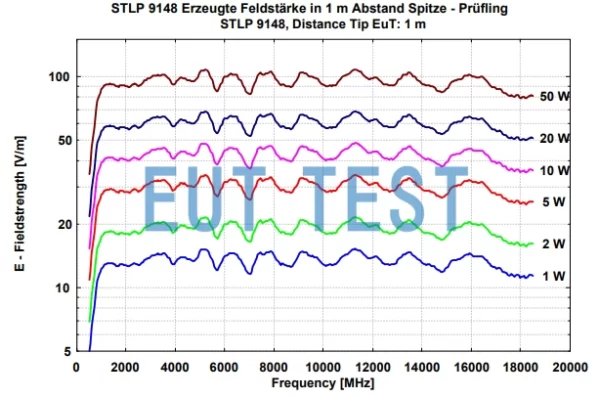

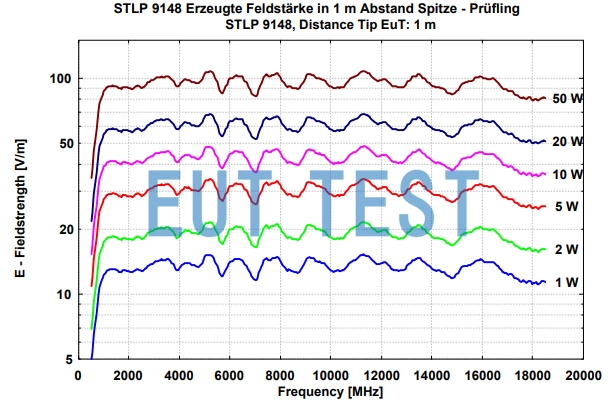

STLP 9149 Input power versus electric field strength graph

Plot of input power vs. electric field strength

Contact us for data on other test distances.

Related equipment:

You can also select more Stacked Log Periodic Antennas manufactured by Schwarzbeck from the equipment list below:

Technical parameters:

Product Specification Sheet:

“Reminder: swipe tables left and right”
Product model
STLP 9148
manufacturer
Schwarzbeck, Germany
Domestic China Agent Sales
Shenzhen EUTTEST
Available frequency
0.7GHz-20GHz
nominal frequency
1GHz-18GHz
Connector Impedance
50Ω N-Type
Antenna Gain
typ. 8.6 dBi ± 1 dB
Maximum input power
50W
E-field half-wave width
58°
H-field half-wave width
60°
size
490 x 270 x 270 mm
weight
1.2kg
Antenna tubes
22mm, length 185mm
“Reminder: swipe tables left and right”

Graph of related technical parameters:

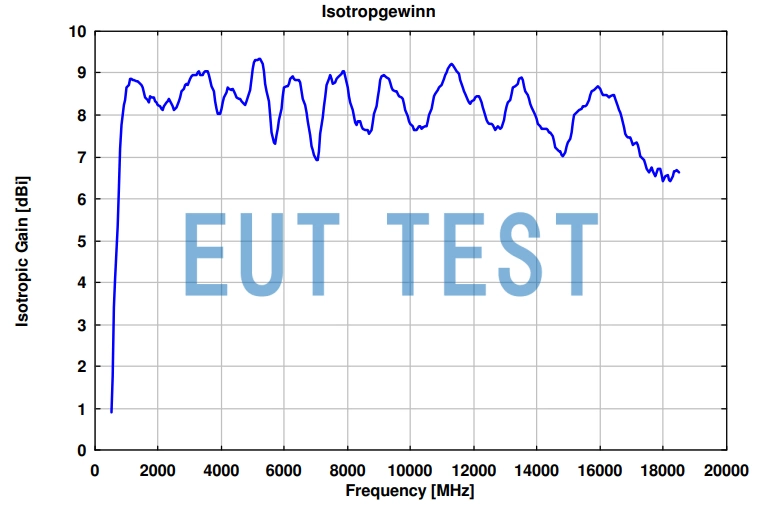

Antenna Gain Curve for STLP 9149

Antenna Gain Graph





Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.
