VUBA 9117 Schwarzbeck VHF-UHF Band Biconical Antenna

Calibration results of antenna coefficients for VUBA 9117 at 150MHz-1GHz

Order Number: EUTS0842

Test frequency: 30MHz - 1GHz

Type: Biconical antenna

Brand: Schwarzbeck

Min. order: 1 Unit

Stock:

schwarzbeck Real Time Inventory

Delivery: Click on the link above to inquire

Standards: Common Test Standards

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Product Description:

The VUBA 9117 biconical antenna is the latest VHF-UHF broadband antenna introduced by Schwarzbeck in 2025. The well-designed antenna structure gives it a flat gain characteristic in the frequency range of 150-1000 MHz. The antenna's directional pattern is circular in the H-plane and “8”-shaped in the E-plane, similar to a dipole directional pattern, and is most typically used for rapid assessment of attenuation at EMC test sites.

This product has replaced the already sold UBA 9117 Antennas.

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”

Product model

VUBA 9117

manufacturer

Schwarzbeck

China Agent Sales

Shenzhen EUTTEST

Test frequency range (typical):

150 MHz - 1000 MHz

Extended Frequency Range (External Ferrite Braided Choke)

30 MHz - 1000 MHz

Nominal impedance:

50 ohms

Antenna factor (depending on the type of element used):

15 - 35 dB/m

Length (LH):

540 mm

Palombia:

1:1

Width (LE):

440 mm

Antenna shaft (tube):

22 mm

Total weight:

0.83 kg

Maximum transmit power (EMC TX):

5 W

Coaxial connectors:

N-Mother

“Reminder: swipe tables left and right”

Factory calibration results:

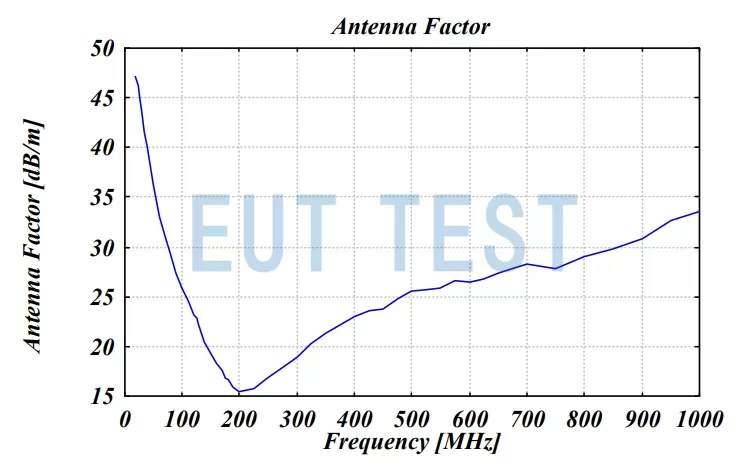

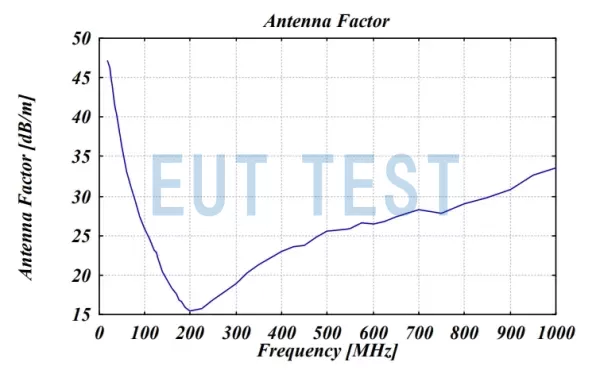

Typical antenna coefficients for this antenna remain in the range of 15 - 35 dB/m, but vary with frequency, as detailed in the calibration results chart below.
