Product Description:

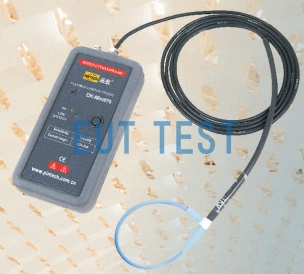

DK-0700 is a flexible current probe sold by Shenzhen EUTTEST agent, the maximum measurable current is 700A, the minimum can test 7A, can meet most of the daily test requirements, in addition, the probe uses a flexible coil design, more conducive to the insertion of the probe to the internal testing of equipment. We also provide customers with up to 4 meters of test cable to ensure the safety of testers.
Technical parameters：
Product Specification Sheet:
“Reminder: swipe tables left and right”Product model
DK-0700
China Agent Sales
EUTTEST
Transmission coefficient-variation ratio
10 mV/A
Maximum test current
700 A
Minimum test current
7 A
output voltage
7 V
output noise
14 mV
3dB bandwidth
50Hz-6/10 MHz
accurate
1%+3 mV
pressure resistance
3 kV
Maximum operating temperature range
-20°C-100°C
Recommended operating temperature range
0℃-50℃
electric power source
battery powered
Operating humidity
20%-75%
weight
400 grams
size
170*86*30 mm
Optional Test Coil Length
300mm - 1000mm
Optional test cable length
1-4 meters available
Standard Accessories
“Reminder: swipe tables left and right”Name of annex
quantities
Flexible Current Probe DK-0700
1 unit
BP-250 BNC Coaxial Cable
1 article
Flexible Adapter
1
Flexible USB Adapter Cable
1 article
batteries
4
Operating Instructions
1 copy
Certificate of Conformity
1 copy
