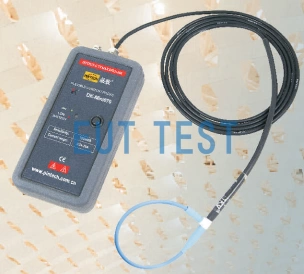

Product Description:
The DK-14000, as well as all of the DK Series Flex Current Probes distributed by EUTTEST, are universally used to test AC current signals on oscilloscopes, and can also be used to make numerical measurements of AC values with multifunction input meters, which can be connected to a digital meter or acquisition card to perform measurements with the purchase of the manufacturer's special accessory, the MT-246N (BNC to Banana) connector adapter.
Technical parameters：
Product Specification Sheet:
“Reminder: swipe tables left and right”Product model
DK-14000
China Agent Sales
EUTTEST
Transmission coefficient-variation ratio
0.5 mV/A
Maximum test current
14000 A
Minimum test current
140 A
output voltage
7 V
output noise
5 mV
3dB bandwidth
50Hz-20/30 MHz
accurate
1%+2 mV
pressure resistance
3 kV
Maximum operating temperature range
-20°C-100°C
Recommended operating temperature range
0℃-50℃
electric power source
battery powered
Operating humidity
20%-75%
weight
400 grams
size
170*86*30 mm
Optional Test Coil Length
300mm - 1000mm
Optional test cable length
1-4 meters available
Standard Accessories
“Reminder: swipe tables left and right”Name of annex
quantities
Flexible Current Probes
1 unit
BP-250 BNC Coaxial Cable
1 article
Flexible Adapter
1
Flexible USB Adapter Cable
1 article
batteries
4
Operating Instructions
1 copy
Certificate of Conformity
1 copy
Other models available:
If the test current and other parameters of this probe do not meet your needs, you can also compare and purchase the following products:
“Reminder: swipe tables left and right” “Reminder: swipe tables left and right”
Order No. EUTS0697
ES105 ESDEMC
YRS02 Eurofins Yorkemc
YRS03 Eurofins Yorkemc
CGE01 Eurofins Yorkemc
YRS01 Eurofins Yorkemc
YRS05 Eurofins Yorkemc
