Product Description:

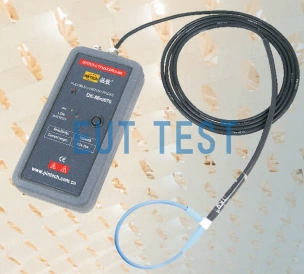

The DK-1400 is a flexible current probe sold by EUTTEST, which can be used to test currents up to 1400A by opening the probe coil and clamping the cable under test. Due to the flexible coil, it is possible to measure different objects, it is easy to clamp into small closed spaces, the coil can be locked, and the measurement accuracy as an acquisition unit is ±1%+2mV during measurement. There is no need to change the main circuit, and the measurement of irregular conductors is more advantageous.
Technical parameters：
Product Specification Sheet:
“Reminder: swipe tables left and right”Product model
DK-1400
China Agent Sales
EUTTEST
Transmission coefficient-variation ratio
5 mV/A
Maximum test current
1400 A
Minimum test current
14 A
output voltage
7 V
output noise
14 mV
3dB bandwidth
50Hz-20 MHz
accurate
1%+3 mV
pressure resistance
3 kV
Maximum operating temperature range
-20°C-100°C
Recommended operating temperature range
0℃-50℃
electric power source
battery powered
Operating humidity
20%-75%
weight
400 grams
size
170*86*30 mm
Optional Test Coil Length
300mm - 1000mm
Optional test cable length
1-4 meters available
Standard Accessories
“Reminder: swipe tables left and right”Name of annex
quantities
Flexible Current Probe DK-1400
1 unit
BP-250 BNC Coaxial Cable
1 article
Flexible Adapter
1
Flexible USB Adapter Cable
1 article
batteries
4
Operating Instructions
1 copy
Certificate of Conformity
1 copy
Other models available:
If the test current and other parameters of this probe do not meet your needs, you can also compare and purchase the following products:
“Reminder: swipe tables left and right” “Reminder: swipe tables left and right”
Order No. EUTS0693
ES105 ESDEMC
YRS02 Eurofins Yorkemc
YRS03 Eurofins Yorkemc
CGE01 Eurofins Yorkemc
YRS01 Eurofins Yorkemc
YRS05 Eurofins Yorkemc
