ETS 2175 ETS-LINDGREN MiniMast Pneumatic Antenna Tower

Order Number: EUTS0760
Brand: ETS-Lindgren

Min. order: 1 Unit
Stock: 0
Delivery: 16 weeks

Standards: Common Test Standards
Industry: General Electronics

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Internet Banking T/T

Product Price:

Product Description:

2175 is a product model of MiniMast pneumatic antenna tower made by ETS-LINDGREN Company in the United States, and is generally referred to as ETS 2175 in the industry. Model 2175 has the same function as other standard 4-meter antenna towers of ETS Company, which are able to move the EMC antenna supplied by EUTTEST to the customer within the height range of 1-4 meters or change the direction of polarization. polarization direction, these movements are powered by an additionally purchased gas compressor.

Product Features:

The biggest difference between the ETS 2175 and other standard 4 meter antenna towers is its miniature size, which makes it a good choice for shielded rooms or dark rooms where the interior space is compact; we also provide easy-rolling polyurethane wheels to allow EMC testers to quickly move the entire antenna tower around the room to the proper test location.

Product Parameters:

“Reminder: swipe tables left and right”
Product model
2175
Industry abbreviations
ETS 2175
manufacturer
ETS LINDGREN
Authorized Sales Service Provider
EUT TEST
Antenna tower height
4.61 meters
Maximum load
10 kg
weight
81.2 kg
Antenna Vertical Motion Range
1-4 meters
vertical rate of motion
3 cm/sec ~ 22 cm/sec
Antenna Polarization Control
horizontal polarization
vertical polarization
polarization rate
3~30 times/second
barometric pressure requirement
410-550 kPA
electricity supply
10A single phase, 220V, 50/60Hz
Optional accessories
EMCenter with EMControl card (controller required)
Universal Antenna Mount
Customized antenna mast height
Additional Fiber Optic Cable Jacket
Standard Accessories
Antenna Tower Standard Components
Air-driven antenna to change polarization (customer-supplied air source)
10 m fiber optic cable
synopsis (of a play or film)
“Reminder: swipe tables left and right”

Attention:

ETS 2175 EMC antenna towers controlled by EMControl require the framework version to be updated to the following version or higher:

  • EMCenter: V5.21
  • EMControl (7006-001)
  • Card: V2.5.6
  • Backplane: V2.3.0
  • Display: V1.4.10

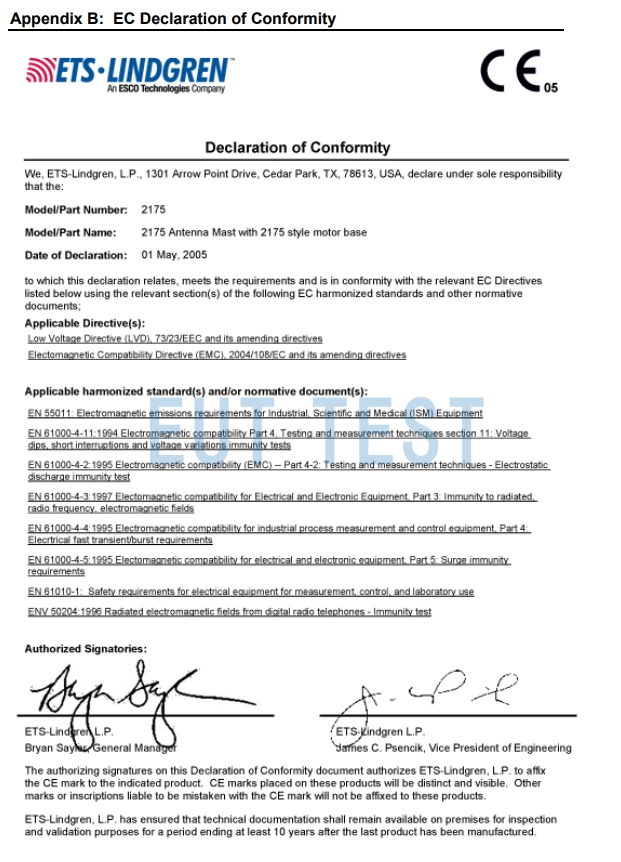

CE marking certificate:

CE marking certificate for ETS 2175

CE marking certificate for ETS 2175

ETS other similar products are recommended:

ETS-lindgren offers a wide range of EMC antenna towers for different applications, which can fulfill the needs of antenna elevation, antenna angle control and so on.

  • 4-TR Tripod 2-meter Antenna Lifting Tripod
  • 7-TR Tripod 1-4 meter antenna lift antenna tower, manual version & pneumatic version
  • 2175 Pneumatically Adjustable 1-4 Meter Antenna Lifting Antenna Tower (this product)
  • 1052 Portable and manually adjustable 1-4 meter antenna elevation antenna tower
  • 2171B Elevating Antenna Tower for 1-4 Meter Antennas with Adjustable Antenna Pitch Angle
ETS-lindgren Official Authorized Distributor:

EUTTEST is an official authorized reseller of ets-lindgren, whose full official name is: ETS-Lindgren Inc.(ESCO technology Company)

Ltd. is authorized by ets-lindgren to sell all products in China region and provide technical service for the products sold.
