F-080902-1005-2 Calibration Fixture for Current Monitoring Probe F-170804-1005-1

Product Description:

F-080902-1005-2 is a current monitoring probe manufactured by Fischer Custom Communications, USA.F-170804-1005-1The calibration fixture, with which you canCalibrating the transmission impedance of a current probeThere are four latches on the top of the fixture to secure the top cover, and by unlocking the latches and removing the top cover of the fixture, you can easily clamp the 170804 Current Probe to the 50-ohm center conductor of the fixture.

This fixture can be used for current probes from FCC as long as they fit into a space with an inside diameter of 65 mm, an outside diameter of 103 mm and a height of 19 mm.

Technical parameters：

Product Specification Sheet:

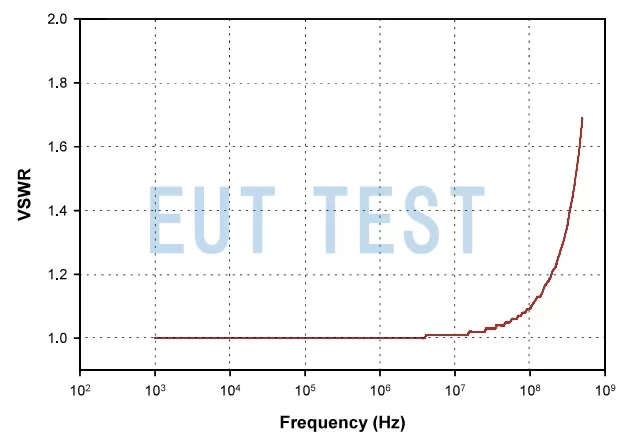

The VSWR of the F-080902-1005-2 can be as low as 1:1 and as high as 1.7:1, which is in accordance with the typical value of VSEW<2:1 described above, and the detailed data are shown in the Voltage VSWR test chart below.

Voltage Standing Wave Ratio VSWR full frequency < 2:1

Order No. EUTS0834

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
