F-35A-L | FCC | 10Hz-108MHz | CISPR25 Current Probe

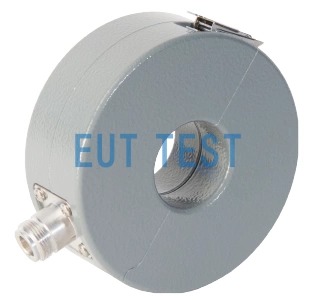

F-35A-L
F-35A-L Transmission Impedance Curve for F-35A-L
Order Number: EUTS0058
Test frequency: 10Hz - 108MHz
Type: Current Probe-EMI
Brand: FCC
Origin: United States | Import

Min. order: 1 Unit
Stock: 0
Delivery: 12 weeks

Standards:
Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Internet Banking T/T

Product Price:

Product Description:

F-35A-L is a CISPR25 current probe produced by the FCC and authorized by EUTTEST Shenzhen for sale. It can be used for laboratory and field testing to measure electromagnetic interference between 10Hz and 108MHz, which means that this probe can be used for automotive electronics EMC standard requirements.CISPR25 current methodTested to operate at 200 amps DC 400 Hz and 100 amps peak pulse.

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”
Model number
F-35A-L
Product name
CISPR25 Current Probes
manufacturer
U.S. FCC (Fischer Custom Communications, Inc.)
China Agent Sales
Shenzhen EUTTEST
Available frequency range
10Hz-108MHz
Internal Ring Diameter
32 mm
External ring diameter
98 mm
high degree
38 mm
Typical ZtΩ
1
Typical dBΩ
0
connector
N Female, 50 Ohm
industrial frequency current
200 A (DC - 400 Hz)
Continuous wave current
3A
peak pulse current (physics)
100A
  • 1: Calibrate the probe with a 50Ω+j0Ω load impedance.
  • 2: Depends on pulse width and pulse repetition rate.
Optional calibration fixture
fcc-mpcf-2-32-40/98/38
packing list
  • One probe;
  • One copy of the instruction manual;
  • One copy of factory calibration data;
  • One hard plastic case;
“Reminder: swipe tables left and right”

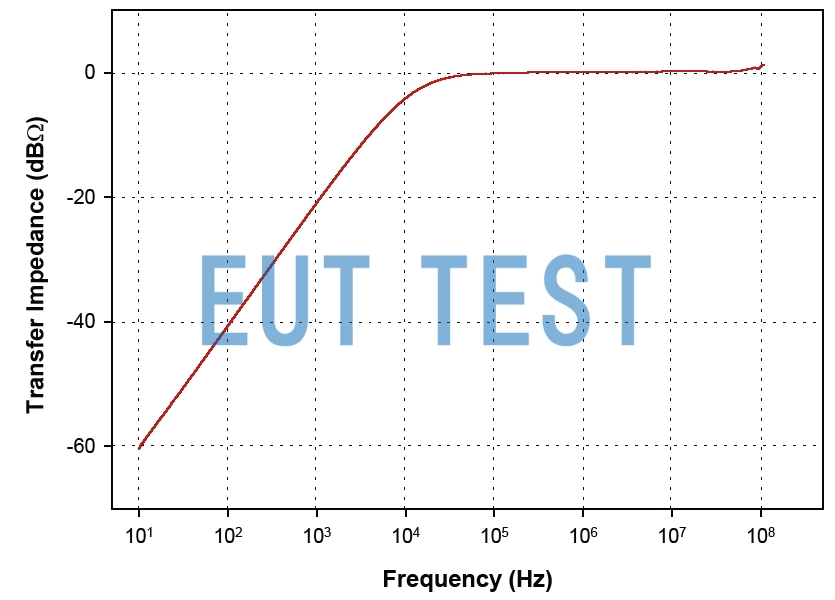

Transmission impedance graph.

(Used to test corrections, contact EUTTEST for more information on usage)

Transmission Impedance Curve for F-35A-L

Transmission impedance graph

FCC: Product specifications are subject to change without notice.

Regarding the delivery date: please contact us subject to the reply from EUTTEST sales staff.

If the frequency of this probe does not meet your needs, please use another probe model.

Order No. EUTS0058

Fill out the form to get a quote

Entered. 0/100

Contact EUTTEST Sales for a product quotation

Sales Hotline:13425158926

Sales mailbox：sales@euttest.com

Sales WeChat account: euttest

EUTTEST-inquiry-wechat Shenzhen EUTTEST Technology Co.

Contact Sales by WeChat

Sales QQ：3127609248

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.

FCC Official Authorized Dealer:

EUTTEST is an official FCC authorized dealer, and the full official name of the company is: Fischer Custom Communications, Inc.

Ltd. is authorized by FCC to sell all FCC products in China and provide technical service for the products sold.

[1043] DISCLAIMER: Reproduction and redistribution by anyone without written permission from EUTTEST is prohibited.

Product parameters are subject to the manufacturer's final version.
