FCC-MPCF-2-32-40/98/38 Current Probe Calibration Fixture

Product Description:

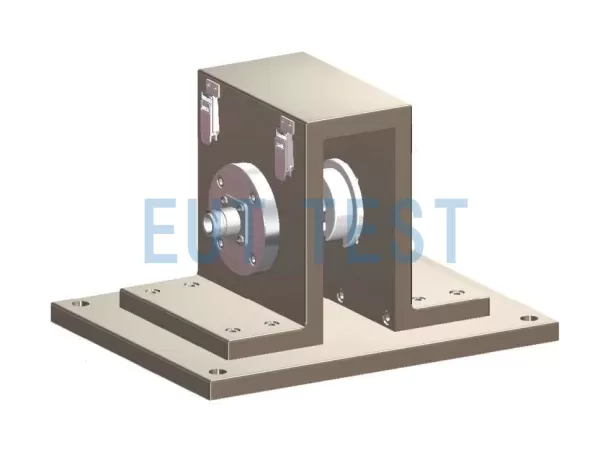

The FCC-MPCF-2-32-40/98/38 is a current probe calibration fixture manufactured by FCC, Inc. and is ideally suited toF-200921-1005-2, F-35A-L, F-57 Three different current probes are used for metering and calibrating their transmission impedance up to a maximum frequency of 500 MHz and a minimum of 10 Hz, accommodating Fischer's customized communication current probes with an inner diameter of 32 mm or 40 mm, an outer diameter of 98 mm and a height of 38 mm. Such an excellent test frequency range, yet it weighs only 2.2 kg.

Extended Reading:How do I calibrate the transmission impedance of a current probe?

Technical parameters：

Product Specification Sheet:

As you can see from the graph below, the VSWR of this fixture is very small and flat, the smaller the VSWR helps to minimize the signal standing waves during the metering of the current probes and reduces the input power requirement. If you own any of the three current probes mentioned above, be sure to contact us to purchase and calibrate your test with this fixture.

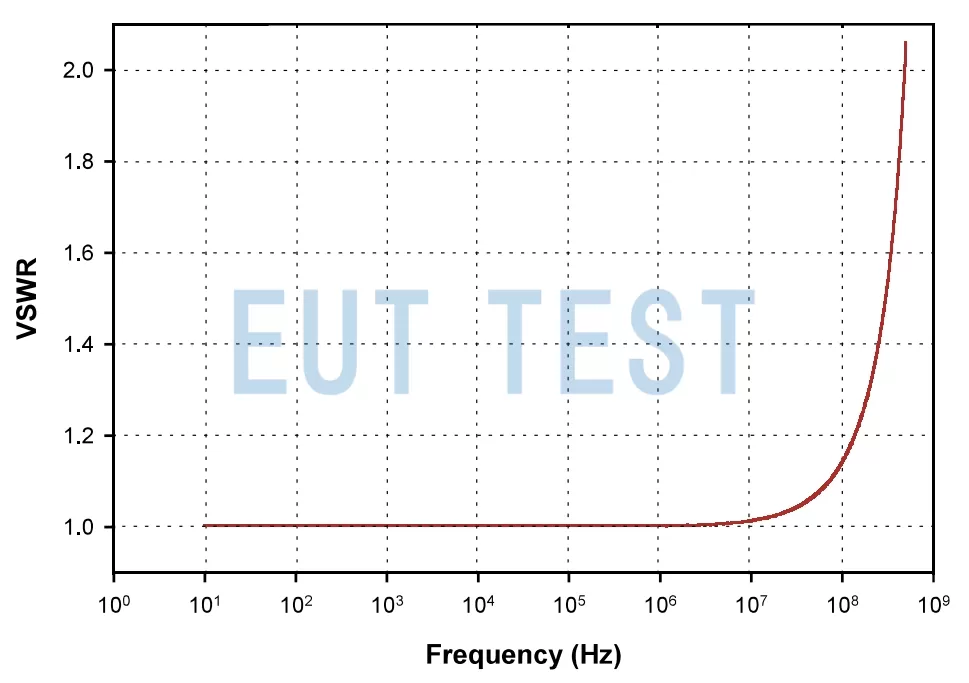

FCC-MPCF-2-32-40/98/38 Voltage VSWR Test Chart

Order No. EUTS0839

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
