FCC-801-50-150-BCI Conducted Immunity IEC61000-4-6 150Ω-50Ω Adapter

Product Description:

FCC-801-50-150-BCI is a 150Ω/50Ω adapter manufactured by FCC and authorized to be sold by Shenzhen EUTTEST. The adapter is used to convert 150Ω impedance to 50Ω for connecting to an external receiver for testing. When the impedance is matched, we can disregard the test level at the 150Ω end and just monitor the test results at the 50Ω end.

Technical parameters：

Test Utilization Guide:

This adapter is suitable for current probe injection clamp testing according to IEC 61000-4-6 and GBT 17626.6.

150Ω/50Ω calibration adapter, calibration fixture, current injection clamp combination can be completed GBT 17626.6 Figure 9 level calibration, calibration level, conducted immunity signal generator is connected to the RF input port of the calibration fixture, and in the calibration fixture on both sides of the connection of the 150Ω/50Ω calibration adapter, and then start the generator to start calibration. Contact us for more information on the detailed operation.

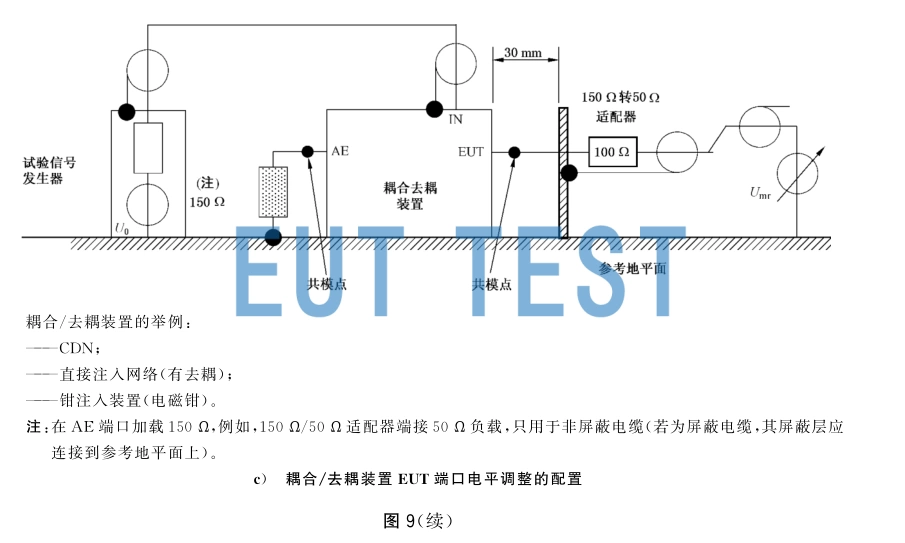

Test Application Configuration Chart

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.

FCC Official Authorized Dealer:

EUTTEST is an official FCC authorized dealer, and the full official name of the company is: Fischer Custom Communications, Inc.

Ltd. is authorized by FCC to sell all FCC products in China and provide technical service for the products sold.

Click to view the image of the authorization
