PVDC 8300 Schwarzbeck 100A PV Inverter DC LISN

Product Description:

PVDC 8300 is a DC artificial network LISN manufactured by Schwarzbeck, Germany, which is suitable for conducting interference tests on PV inverters with 100A current at the DC port and a maximum transient current up to 150A/1500V, which meets the needs of general users and is very suitable for solar, wind and other new energy inverter system manufacturers to quickly test in the production workshop or R&D site. The

Extended Reading:How to Measure Conducted Interference at the DC Port of a PV Inverter Using a DC-AN

Technical parameters：

Product Specification Sheet:

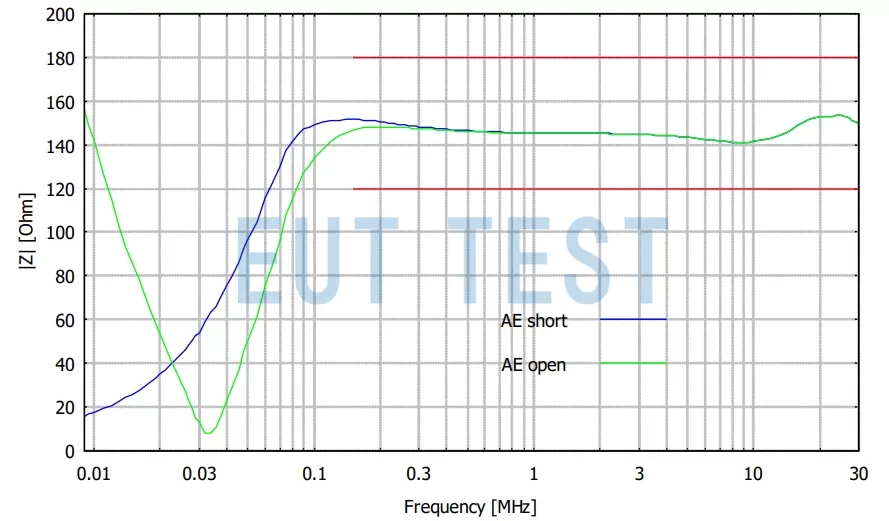

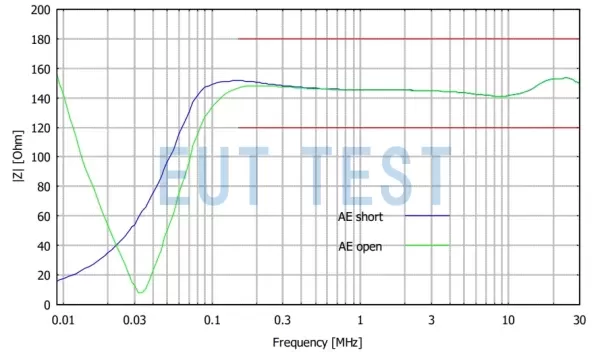

schwarzbeck PVDC 8300 Common Mode and Differential Mode Impedance Curves

Feature Description:

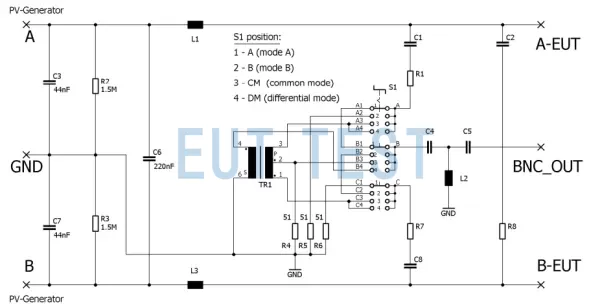

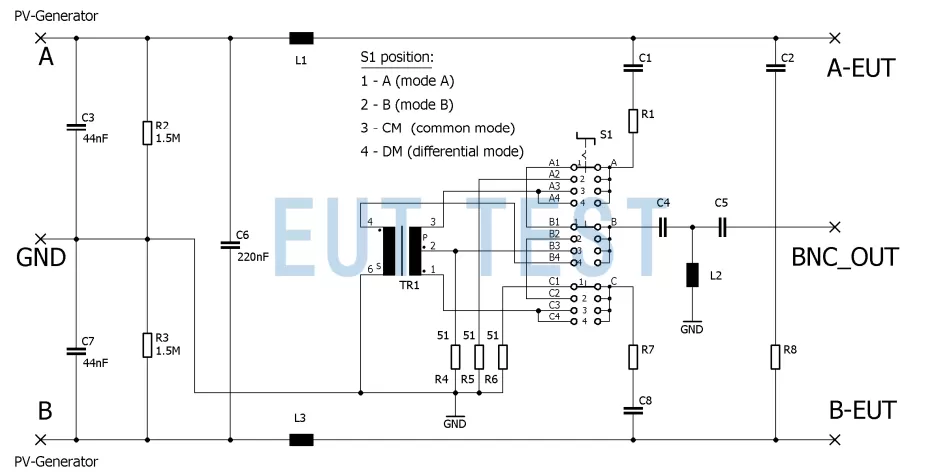

Changing the position of the S1 switch, the PVDC8300 supports four test modes, including differential mode, common mode, or A/B mode.

PVDC8300 supports four test modes

Order No. EUTS0796

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
