PVDC 8301-400 Schwarzbeck 400A PV inverter DC LISN

Product Description:

PVDC 8301-400 is a DC artificial network DC-AN manufactured by Schwarzbeck, Germany, with a maximum voltage of 1500 V. It meets the requirements of users with certain current requirements and is very suitable for manufacturers of new energy inverters such as solar and wind power to quickly test in the workshop or R&D site.

The 8301-400 version isPVDC 8301 This product is an upgraded product, but it is bigger, heavier and more expensive, if your test current is not up to 400A, you can buy 8301 version will be more cost-effective. This product is suitable for DC port 400A current PV inverter conduction interference test, the maximum transient current up to 500A.

Extended Reading:How to Measure Conducted Interference at the DC Port of a PV Inverter Using DC-AN?

Technical parameters：

Product Specification Sheet:

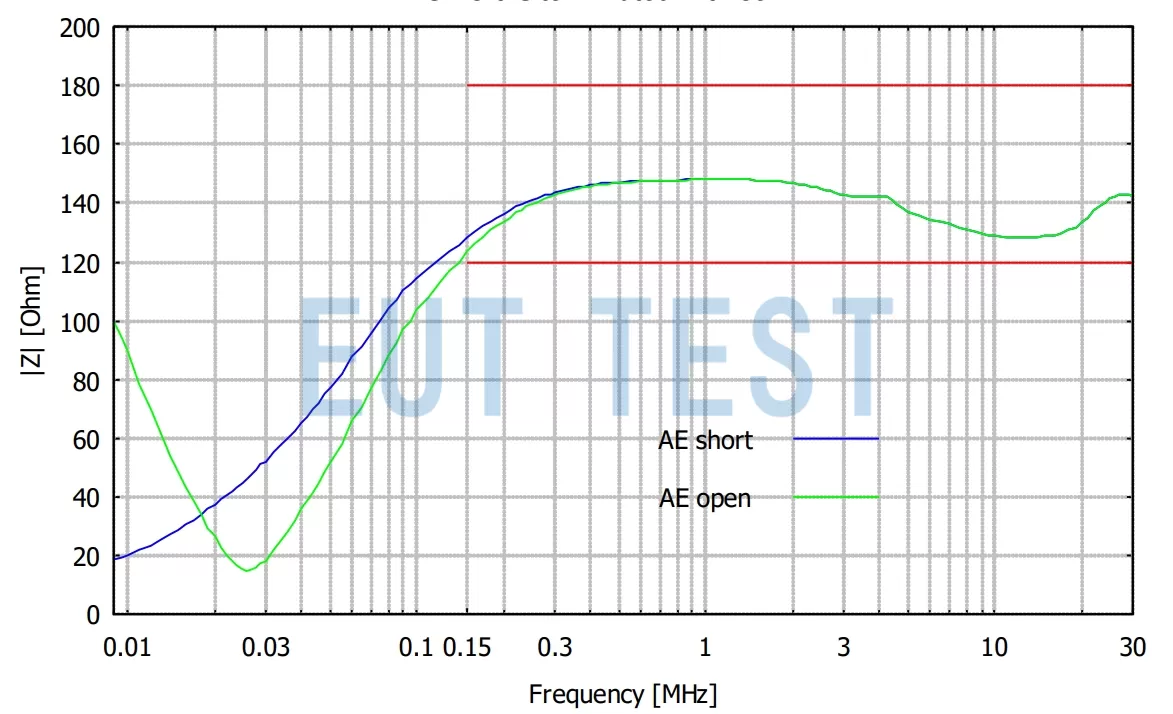

schwarzbeck PVDC 8301-400 Common Mode and Differential Mode Impedance Curves

Feature Description:

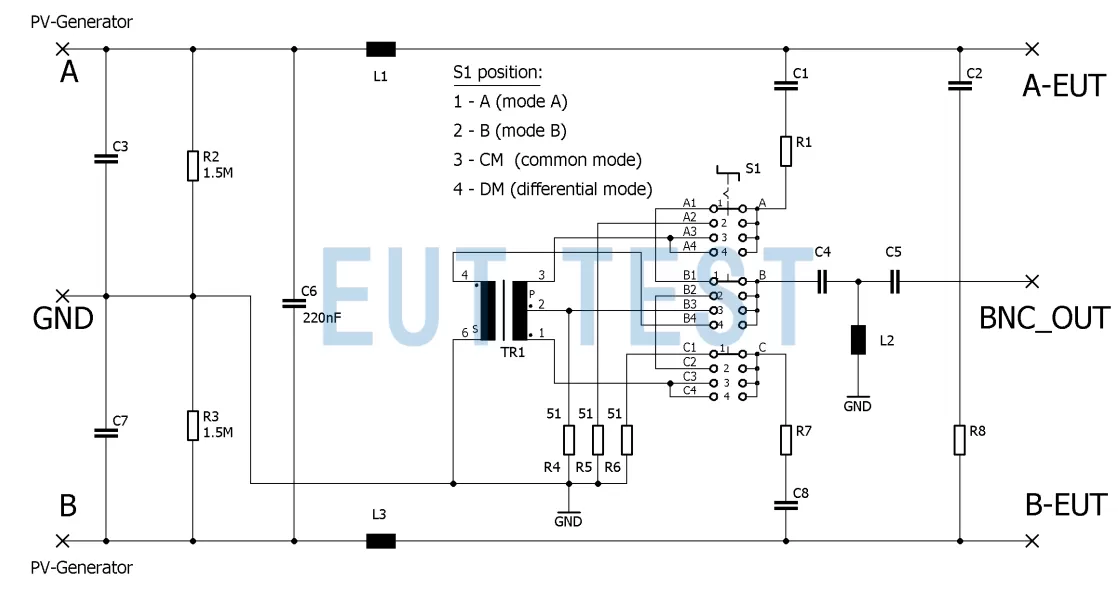

Changing the position of the S1 switch, the PVDC8301-400 supports four test modes, including differential mode, common mode, or A/B mode.

PVDC 8301-400 supports four test modes

Order No. EUTS0798
