PVDC 8301 Schwarzbeck 200A PV Inverter DC LISN

Product Description:

PVDC 8301 is a DC artificial network DC-AN manufactured by Schwarzbeck, Germany, which is suitable for conducting interference tests on PV inverters with a current of 200A at the DC port, and a maximum transient current of 250A/1500V, which meets the requirements of users with a certain amount of current, and is very suitable for manufacturers of new energy inverters such as solar energy, wind energy, etc. to test quickly on the production floor or R&D site. R&D site for quick testing.

Extended Reading:How to Measure Conducted Interference at the DC Port of a PV Inverter Using DC-AN?

Technical parameters：

Product Specification Sheet:

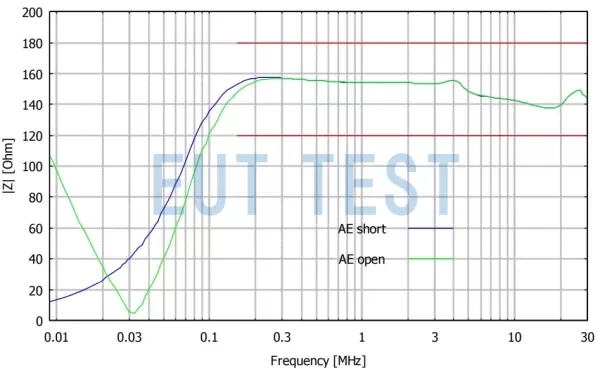

schwarzbeck PVDC 8301 Common Mode and Differential Mode Impedance Curves

Feature Description:

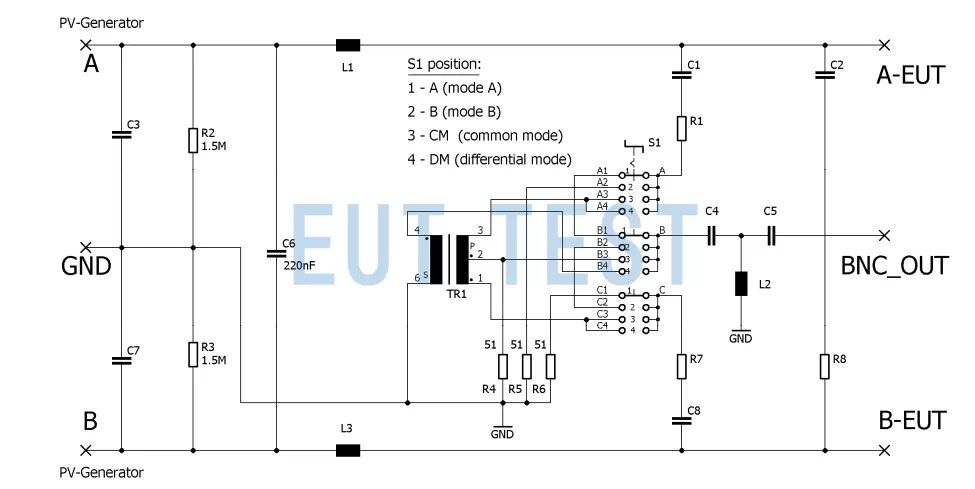

Changing the position of the S1 switch, the PVDC8301 supports four test modes, including differential mode, common mode, or A/B mode.

PVDC 8301 supports four test modes

Order No. EUTS0797
