VHA 9103 B Schwarzbeck Wideband Biconical Antenna Balun

Product Description:

VHA 9103 B is a broadband biconical antenna balun manufactured by Schwarzbeck, Germany. The dipole balun 9103B offers a high degree of symmetry, precise calibration data, excellent workmanship, and low loss, and can be used with most biconical elements manufactured by schwarzbeck. Biconical elements include: BBA 9106, BBAL 9136. BBAK 9137, BBVK 9138 (order extra); collapsible biconical elements such as FBAL 9178 or FBAB 9177 can also be used (order extra). Such a 1:1 balun can be used as a broadband antenna with theVHA 9103 Dipole AntennaUnlike when using the 9103B Barron there is no need to adjust the antenna length to the frequency.

Like most of the Schwarzbeck antenna products sold by EUTTEST, this baron's antenna pole is a 22 mm tube diameter and also has an indexing ring for horizontal and vertical polarization, e.g., inserting the 9103B baron into a removable antenna pole AM 9104 The antenna height of the corresponding biconical antenna can be adjusted between 0.4 and 4 m when the removable antenna mounting box of the

At the rear end of the Barron, a low-loss N female connector can be directly connected to the 10 meter coaxial antenna cable supplied by EUTTESTAK 9513We will also show you how to record cable losses to correct for field strength or ERP calculations.

Technical parameters：

Product Specification Sheet:

When the Barron 9103B is paired with the following different biconical antenna elements, different test frequencies and antenna coefficients can be realized to meet your different testing needs.

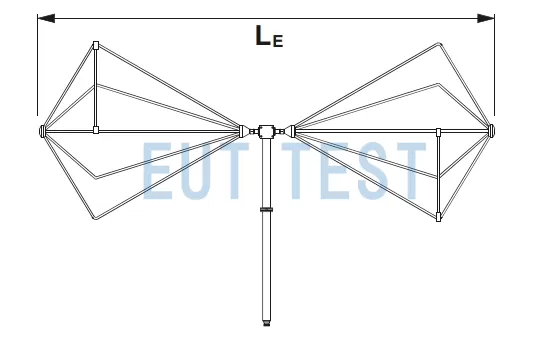

VHA 9103 B can be fitted with different biconical antenna elements

Order No. EUTS0823
