ACS 500N3 and ACS 500N6 AMETEK Single-Phase Harmonic Flicker AC Power Supply

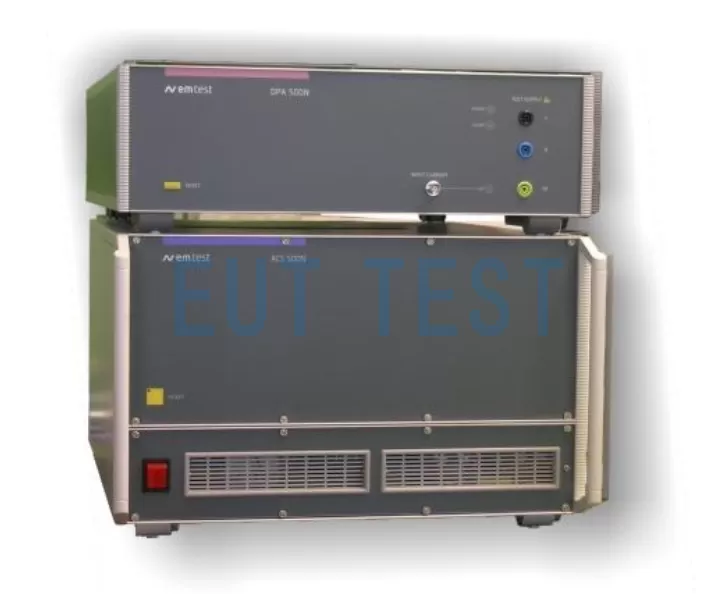

Typical DPA500N + ACS500 Single-Phase Harmonic and Flicker Test System Configuration Diagram

Order Number: EUTS0865

Test frequency: 10 Hz – 80 Hz

Type: Programmable Power Supplies

Brand: EMTEST

Min. order: 1 Unit

Stock: 0

Delivery: 16 weeks

Standards:

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Product Description:

The ACS 500N3 and ACS 500N6 are single-phase AC power sources designed by EMTEST, a subsidiary of AMETEK, specifically for harmonic and flicker testing. These EMC test instruments meet the requirements of the following standards:

EN/IEC 61000-3-2
EN/IEC 61000-3-3
JIS 61000-3-2
GB 17625.1-2022 Electromagnetic Compatibility - Limits - Part 1: Limits for harmonic current emissions (equipment with input current ≤ 16 A per phase)
GB/T 17625.2-2007 Adopted Chinese Standard Title: Electromagnetic Compatibility - Limits for Voltage Changes, Voltage Fluctuations, and Flicker Produced in Public Low-Voltage Power Supply Systems by Equipment with a Rated Current ≤16A per Phase and Unconditional Access
GB/Z 17625.3-2000 Electromagnetic Compatibility - Limits for Voltage Fluctuations and Flicker Produced by Equipment with a Rated Current Greater Than 16 A in Low-Voltage Supply Systems

Instrument Functions:

The EMTEST ACS 500N series EMC test equipment delivers perfectly stable sine wave voltage signals for harmonic and flicker measurements, enabling fully compliant harmonic and flicker analysis regardless of grid supply frequency or voltage stability. In accordance with IEC standards, measuring harmonics and flicker requires supplying a pure voltage to the EUT. The ACS500N guarantees a sine wave output voltage with a Total Harmonic Distortion (THD) below 0.5% regardless of load. Furthermore, the voltage maintains stability at 0.1% even during load variations.

Regardless of grid supply conditions, the ACS 500N meets stringent standards for sine wave voltage signal purity and frequency stability. With power ratings of 3,000VA or 6,000VA, it is suitable for testing small to medium power devices under test (DUT) according to EN/IEC 61000-3-2, EN/IEC 61000-3-3, and JIS C 61000-3-2 standards.

Additionally, this AC voltage source features electronic protection capabilities to prevent over-temperature, over-current, over-voltage, and under-voltage conditions.

When used with the EMTEST DPA 500 series harmonic and flicker analyzer, the ACS 500N enables fully remote automated test control via the net.control software on a host computer through the RS232 interface on its rear panel.

Technical parameters：

Product Specification Sheet:

The ACS 500N series power supply offers two models to choose from: N3 (3kVA) and N6 (6kVA).

“Reminder: swipe tables left and right”

Instrument Model:

ACS 500N3

ACS 500N6

Manufacturer:

AMETEK - EMTEST

Agent sales in China:

Shenzhen EUTTEST

Output Power:

3kVA

6 kVA

Output Voltage:

300V

Output Current:

12.1A continuous current

24A continuous current

Manufacturer:

AMETEK EMTEST

Agent sales in China:

Shenzhen EUTTEST

Output power supply frequency:

10 Hz – 80 Hz

Output frequency accuracy:

100 parts per million

THD@50Hz:

0.5%

Equipment Dimensions:

287 mm × 449 mm × 500 mm

weight

23 kilograms – 40 kilograms

“Reminder: swipe tables left and right”

IEC Single-Phase Harmonic and Flicker Test System Selection Recommendations:

When your product requires a maximum continuous current of 12A, select ACS500N3+. DPA 500N

When your product requires a continuous current of up to 16A to 24A, select ACS500N6+. DPA 500N1.1

Additionally, you will need some test benches, ground coupling plates, and other test accessories. EUTTEST will provide these free of charge when delivering the goods.
