Product Description:
NMHA 6M is Schwarzbeck's latest handheld transmitter immunity antenna kit launched in 2025, specifically designed for the Japanese Nissan standard: 28401 NDS02 [6] and the French Renault automotive standard RENAULT 36-00-808/L. Both standards pertain to testing the immunity tolerance of automotive electronic components against handheld transmitters. This product is distributed and quoted by Shenzhen EUTTEST.
This package has replaced the one we previously released. NHMA 6M Antenna Kit.
Standard Configuration List:

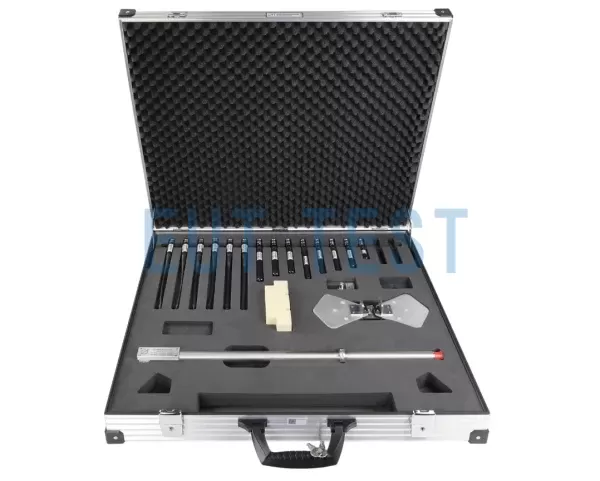

NMHA6M is an antenna kit comprising a normal-mode helical antenna, a balancer, an SBA 9113, a 420NJ component transport case, and other products.
The Schwarzbeck handheld transmitter immunity antenna array provided by EUTTEST covers the frequency range from 26 MHz to 2700 MHz. Typical applications include immunity testing of vehicle components according to manufacturer-specific standards, such as those of Nissan and Renault. The antenna set comprises 14 normal-mode helical antennas and one broadband flat-panel antenna, along with a compact dual-cone antenna and a polystyrene 50 mm standard distance component. All parts are stored in a transport case embedded with shock-absorbing foam to prevent damage during shipping. Additional space within the foam is intentionally reserved for extra small accessories.
The standard configuration list is shown in the table below:
Please select the required antenna model based on test frequency and test standards. Some antennas are available for individual purchase. Contact EUTTEST for additional configuration details.
“Reminder: swipe tables left and right”36-00-808/M
28401NDS02 [6]
Similar Products:
The 6M reduced version features fewer antennas compared to the 6M version antenna set, as detailed in the table below. Please select the appropriate product model based on your test frequency requirements. For each kit, click the antenna model in the table above to view additional technical specifications and descriptions. VW TL 82166 2016-02 Antenna Kit complies with Volkswagen automotive electronics standards.
“Reminder: swipe tables left and right”Includes: NMHA 26, NMHA 28, NMHA 30, NMHA 40, NMHA 52, NMHA 75, NMHA 125, NMHA 145, NMHA 155, NMHA 165, NMHA 174, NMHA 190, NMHA 223, NMHA 350, SBA 9113 (excluding original dual-cone elements), 420 NJ planar elements, Spacer 50, NMHA antenna balancers, and transport cases.
Order No. EUTS0859
EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG
Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.
